Cav Lucas Top Cover Replacement Kit for Case DPA Injection Pumps U3042

Description

Delphi Cav Lucas Top Cover Replacement Kit for Case DPA Injection Pumps U3042 Fixes Leaky top cover

---

This Cav Lucas Top Cover Replacement kit is a complete rebuild kit for your top cover. Stop those leaks for good as this kit replaces components that commonly leak on these old pumps.

Center return hole is 3/8 – 24 threads, not metric.

Note:  We sell a couple other Cav Lucas Top Cover for DPA Pumps if this one isn’t right for you! See the list below, Thanks.

---

This kit includes:

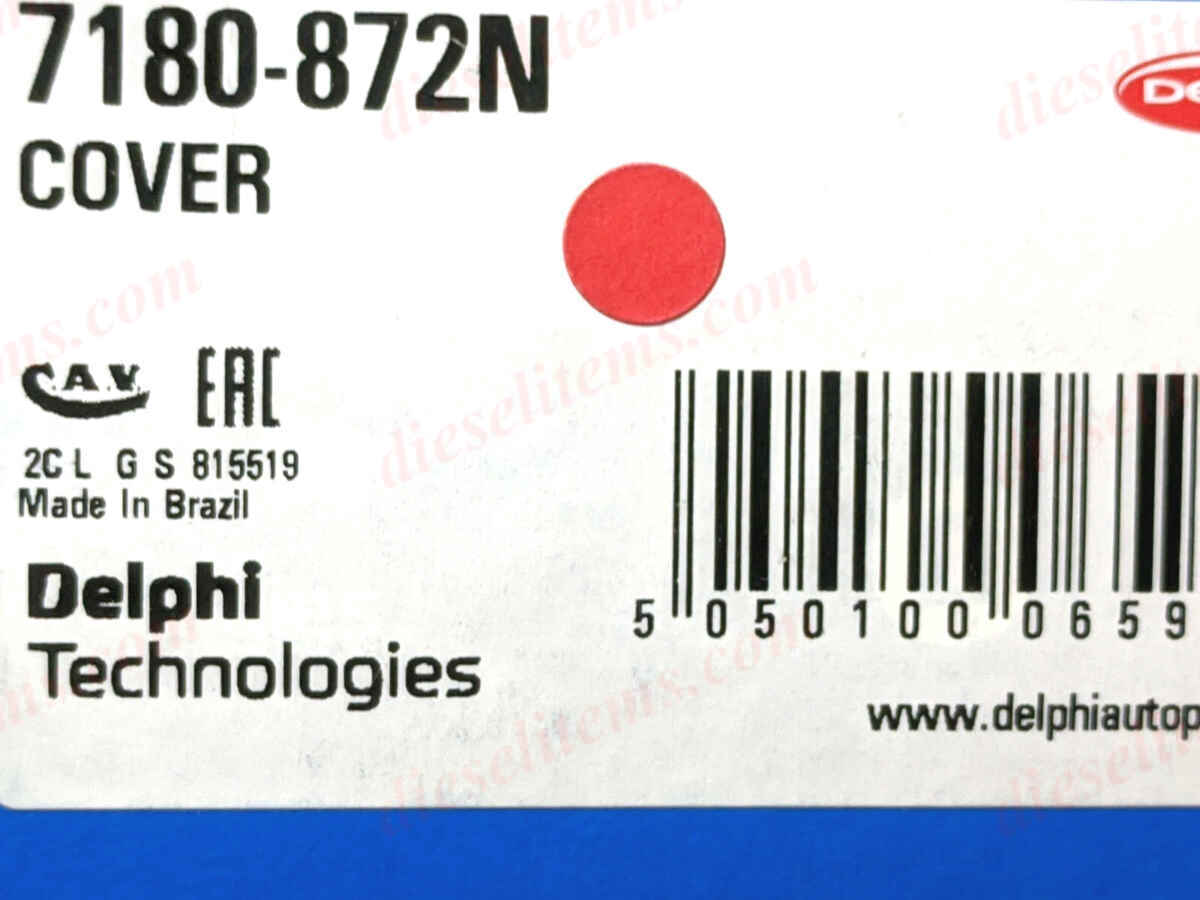

• (x1) Top Cover 7180-872N (Replaces 7123-888N)
• (x1) Gasket 7180-451
• (x5) O-ring
• (x2) DPA paper washers

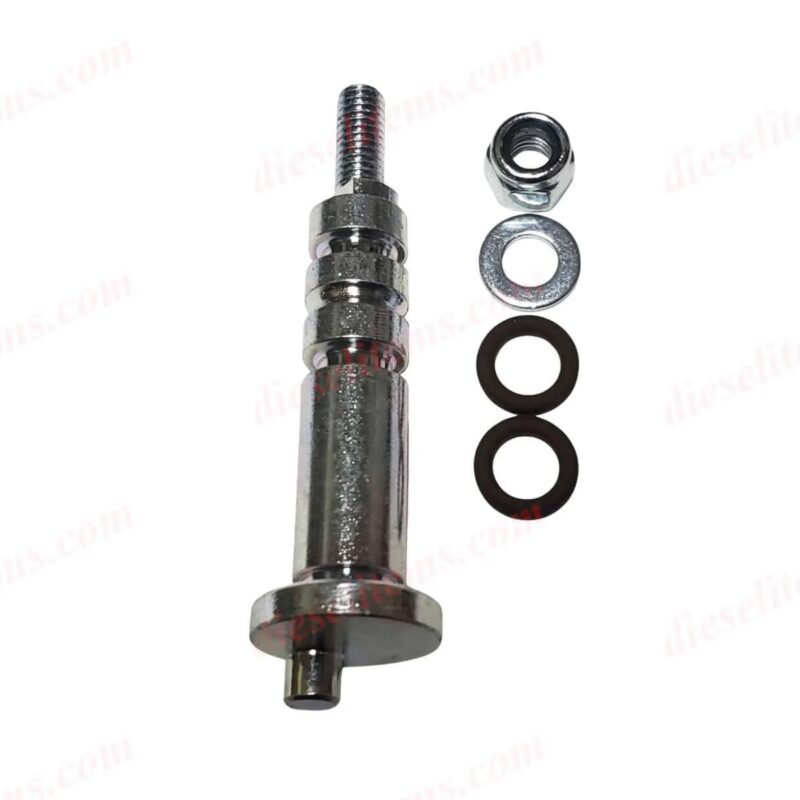

• (1x) Throttle shaft 7123-770A with matching washer and Nut
• (1x) Shut off shaft 7123-726D-R and matching Nut
• (1x) Bleed screw 7123-351A and copper washer

---

Fitment guide:

• Most pumps that are going to be compatible with this top cover start with U3042, But it also fits many other numbers too.
• Mostly fits Case / Cummins applications.
• Please send us your pump number before purchasing if you do not know for certain that it fits your specific model. We are here to help!

---

Here are listing that go with in this kit:

• Throttle Shaft: 7123-770a
• Shut-Off Shaft: 7123-726D
• Gasket: 7180-451
• Bleed Screw: 7123-351A
• Top Cover Stud: 7123-527

---

Other Top Covers for CAV Lucas DPA Diesel Injection Pumps:

• Delphi 7180-872A
• Delphi 7180-872D
• Delphi 7180-873A

---

If you are not sure if this Cav Lucas Top Cover Replacement Kit is right for your application, please send us your complete pump model number.  We are here to help!

You can call us, use our contact form, or even send us an email directly ([email protected])

Thanks!
