CAV Lucas DPA Banjo Bolt with Bleed Screw 7139-560A 9002-093A Air Vent Fitting

Description

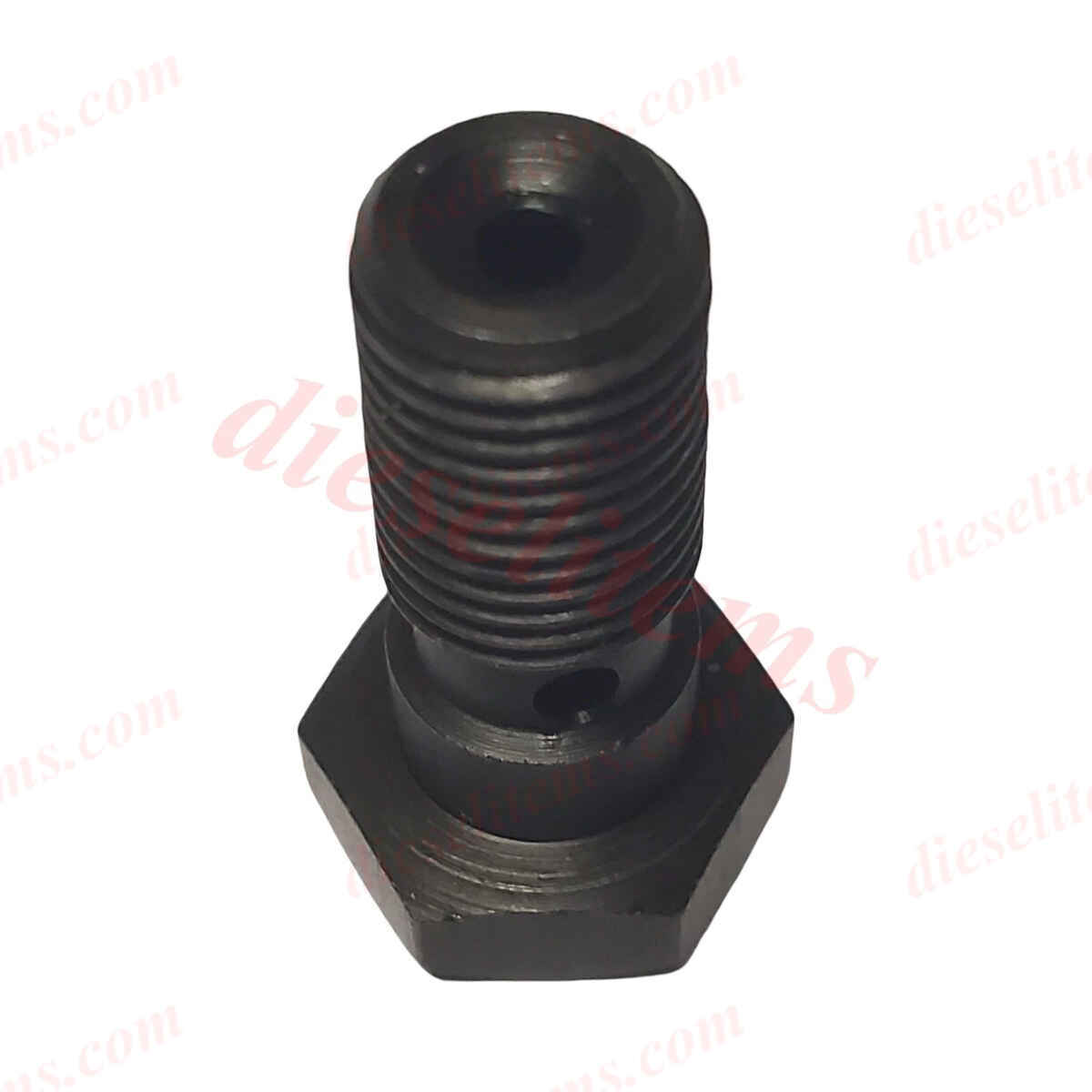

CAV Lucas DPA Banjo Bolt with Bleed Screw 7139-560A 9002-093A

---

This CAV / Lucas / Roto-Diesel DPA banjo bolt with bleed screw is used on select diesel injection pump applications. It installs at the pump outlet / return fitting location and provides a convenient air bleed point for priming and servicing the fuel system.

This fitting may also be called an air vent fitting, vent screw, air vent screw, vent screw assembly, fuel return bleed fitting, connection with drain, pump delivery purge fitting, or fuel outlet connector, depending on the catalog or application.

Instead of removing a fuel line to bleed air from the pump, the top bleed screw can be loosened to let trapped air escape. This can make priming, service work, and troubleshooting cleaner and more convenient.

This fitting uses a small internal check ball. During normal operation, the check ball helps seal the pump outlet / return passage. When the top bleed screw is loosened, the check ball lifts slightly and allows air and fuel to pass through the bleed point.

---

Product Details:

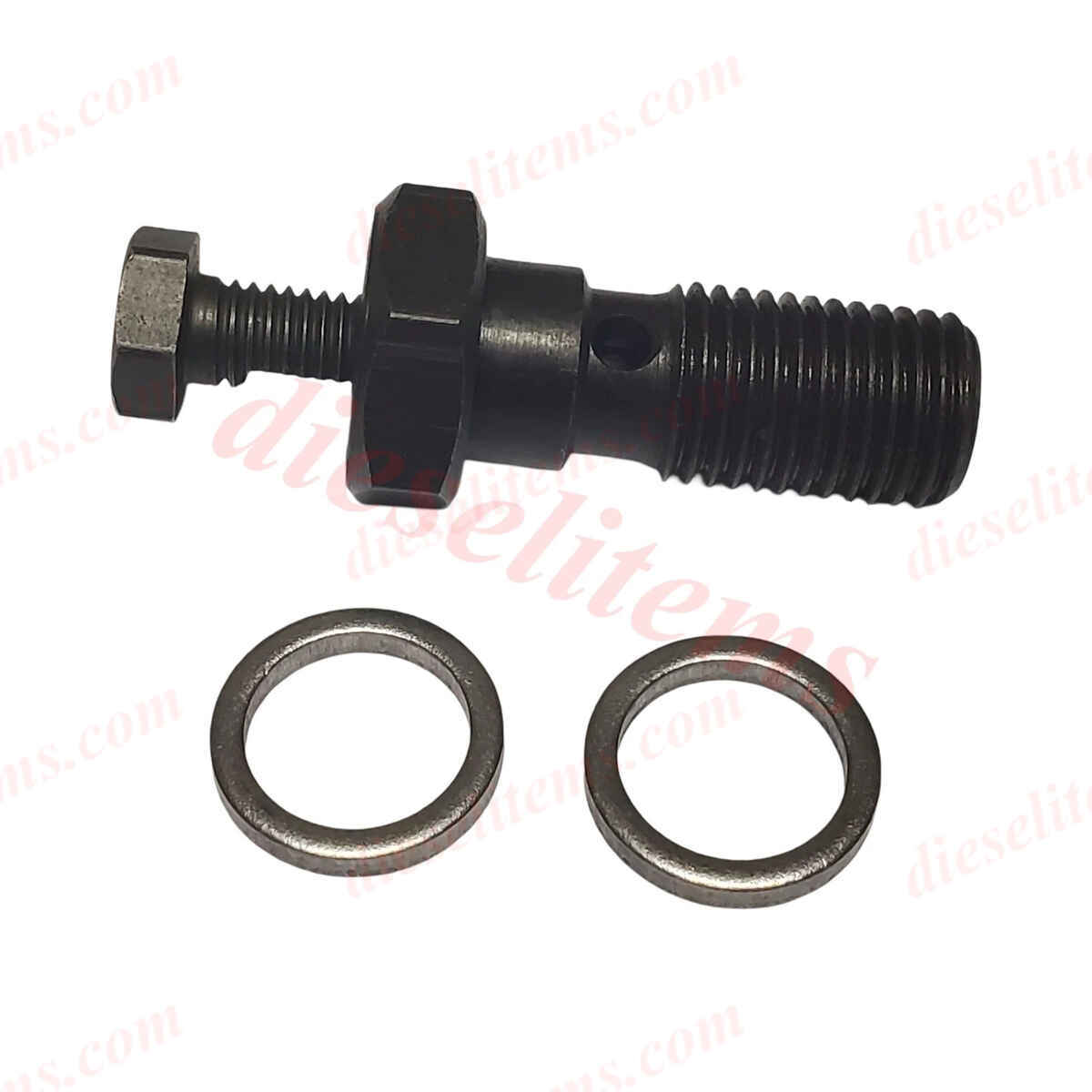

• Banjo bolt with bleed screw
• Air vent / fuel return bleed fitting
• For select CAV / Lucas / Roto-Diesel DPA diesel injection pumps
• Installs at the pump outlet / return fitting location
• Internal check ball design
• Top bleed screw for fuel system priming and service
• Helps bleed air without removing fuel lines

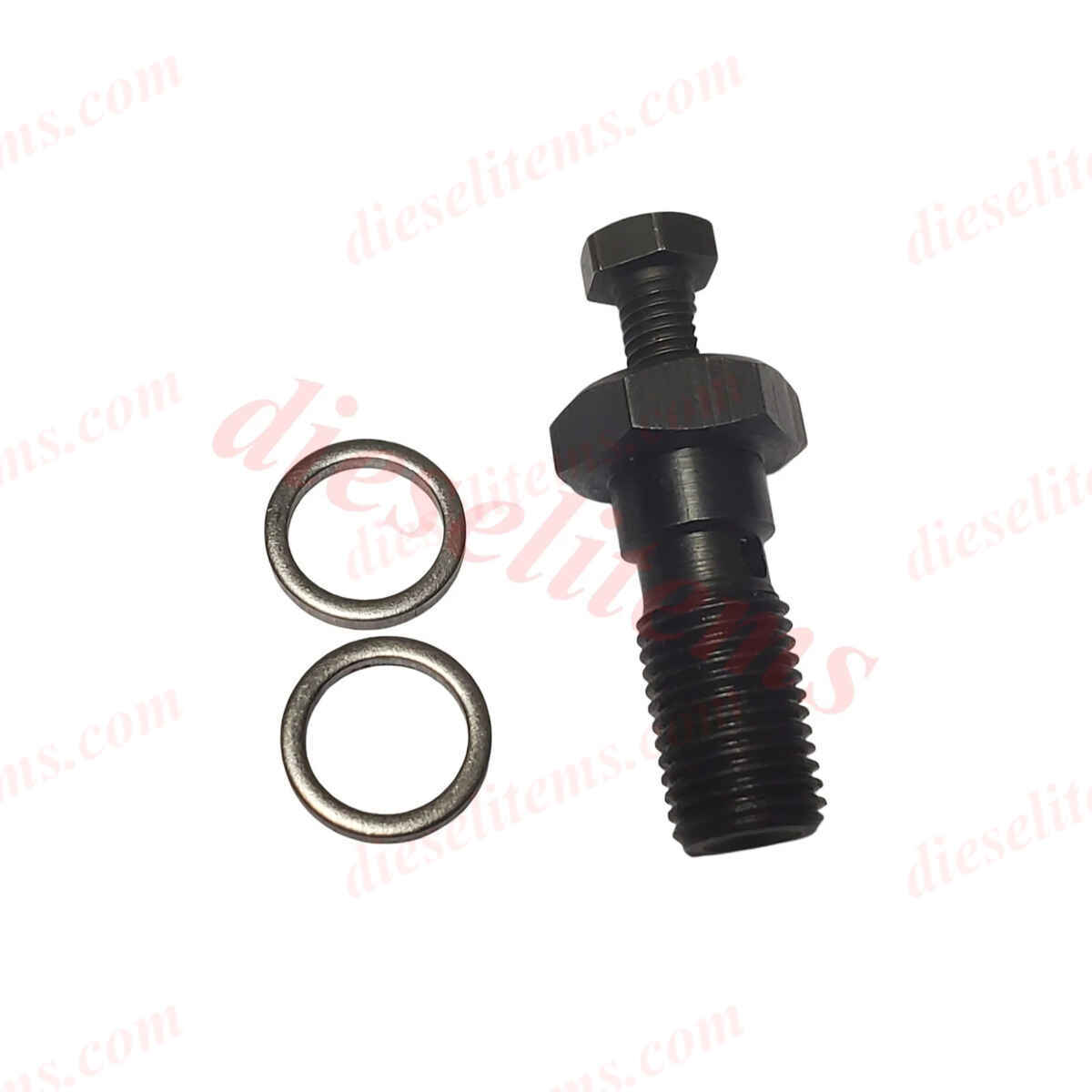

• Includes 2 return line sealing washers

---

Part Numbers:

• CAV / Lucas / Delphi 7139-560A
• CAV / Lucas / Delphi 9002-093A
• CAV / Lucas / Delphi 9003-002A
• Roto-Diesel 9002-039A

---

Additional Cross-Reference Numbers:

The following numbers are listed in some supplier catalogs for this style of DPA bleed / vent fitting. Please use cross-references carefully and compare to your original part before ordering.

• Fiat 9927715
• Fiat 9936120
• Fiat 9986300
• Fiat 9988600
• John Deere AT27232
• John Deere T27232
• PSA / Peugeot / Citroën 1977-04
• Renault / RVI 7701005020

---

Common Uses:

• Bleeding air from a CAV / Lucas DPA injection pump
• Priming the fuel system after service
• Diesel injection pump repair and diagnostics
• Replacing a missing or damaged vent screw / bleed fitting
• Adding a convenient bleed point in place of a plain return fitting
• Reducing mess and downtime during fuel system bleeding

---

Important Service Note:

Use care when loosening or removing the top bleed screw.

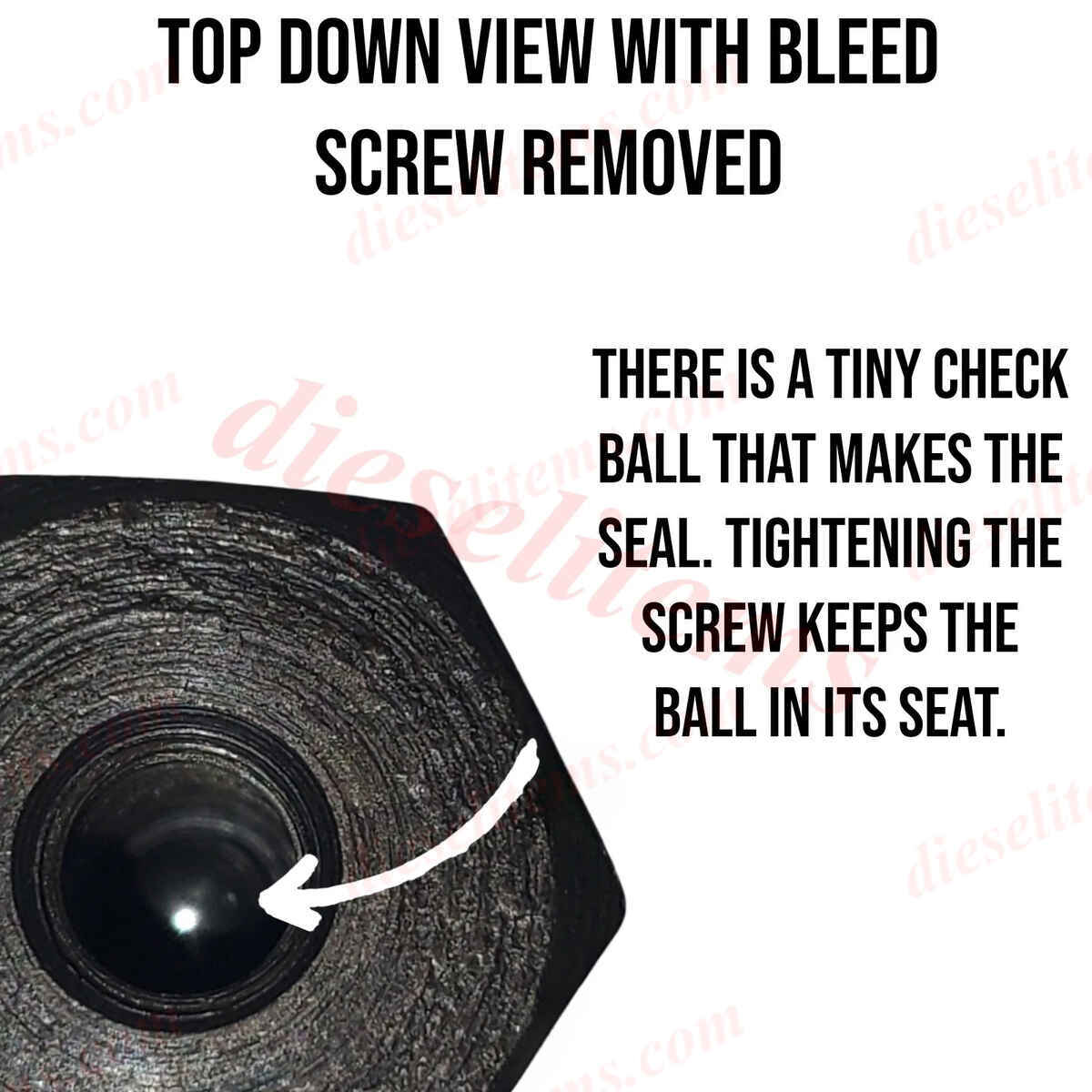

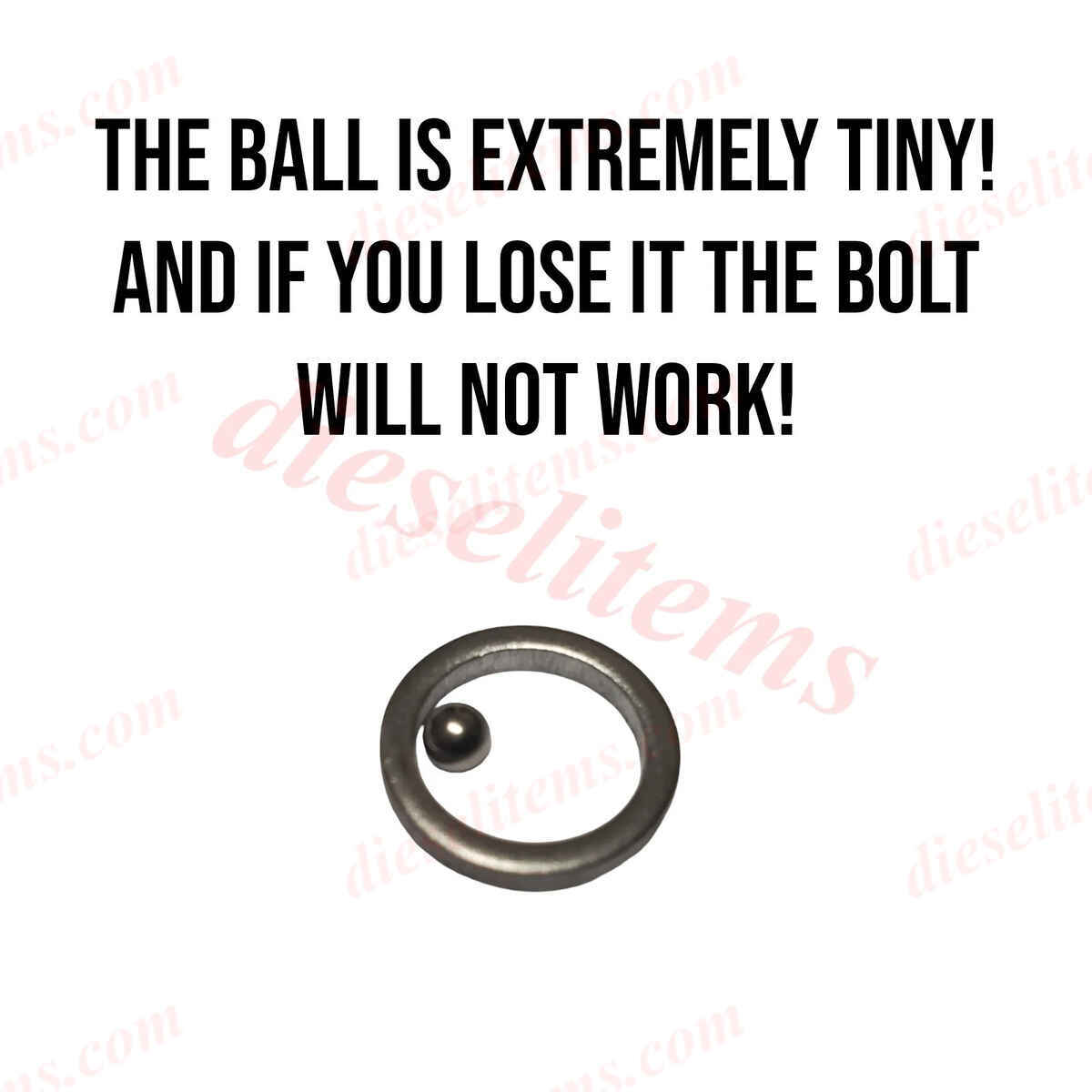

This fitting contains a very small internal check ball. If the top bleed screw is completely removed, the check ball can fall out and may be difficult to find.

---

Fitment Notes:

This fitting is intended for select CAV / Lucas / Roto-Diesel DPA style injection pumps. DPA pumps used different outlet, return, and bleed fittings depending on the pump build and application.

This part appears in catalogs under many DPA pump build numbers and may be associated with Fiat, John Deere, PSA / Peugeot-Citroën, Renault / RVI, and other diesel applications through cross-reference numbers. However, those references do not mean this fitting fits every engine, tractor, or vehicle from those brands.

Please compare this part to the fitting you are replacing before ordering. This is the bleed screw / air vent style banjo fitting for the pump outlet / return side. It is not the same as high-pressure injector line banjo valve fittings such as 7180-358, 7180-357K, 7123-339D, or 7139-954.

---

Need Help Matching This Part?

If you are not sure this CAV Lucas DPA Banjo Bolt with bleed screw 7139-560A is right for your application, please send us your complete pump model number before ordering.
